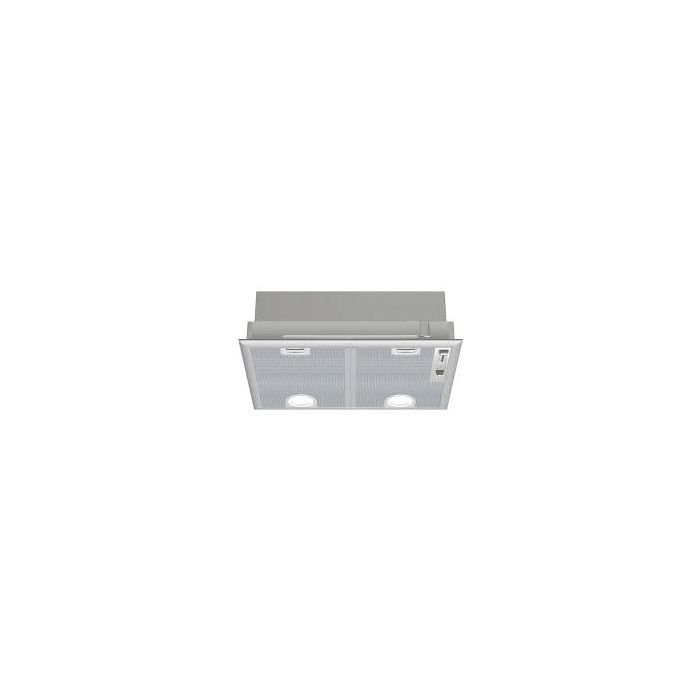

Bosch DHL555BLGB, Canopy cooker hood

Delivery Available
  • ColourSilver
  • Energy RatingC
  • Important InformationMG.This appliance may have some slight cosmetic imperfections. This does not affect the functionality of the item. The damage, if any, is different on every appliance but is rarely visible when installed. You will still receive the full manufacturer's guarantee and the appliance will be inspected prior to being shipped.
  • Item ConditionManufacturers Graded
  • Max Extraction Rate (m3/h)150-450
  • Air Flow Boost618.1
  • Appliance Current (A)10
  • Appliance Frequency (Hz)50
  • Appliance Voltage (V)220-240
  • Approval CertificatesCE, E17D UKCA marking, VDE
  • Boost Position Air Extraction618
  • Boost Position Output Recirculating395.0
  • Construction TypeBuilt-In
  • Cord Length130CM
  • Diameter of Air Outlet0MM
  • Energy Efficiency ClassC
  • Fluid Dynamic Efficiency15.7
  • Fluid Dynamic Efficiency ClassD
  • Grease Filter MaterialWashable aluminium
  • Grease Filtering Efficiency86.7
  • Grease Filtering Efficiency ClassB
  • Installation TypeBuilt-In
  • Lighting Efficiency66.4
  • Lighting Efficiency ClassA
  • Max Air Flow363
  • Max Niche Width500MM
  • Max Output Air Extraction363
  • Max Output Recirculating Air268
  • Min Air Flow196.0
  • Min Niche Width500MM
  • Motor LocationIntegrated motor in hood body
  • Niche Depth350MM
  • No Return Air Flow FlapNo
  • Noise Level56DB1
  • Noise Level Boost Position68
  • Number of Lights2
  • Number of Motors2
  • Odor FilterNo
  • Operating ModeConvertible
  • Plug TypeGB plug
  • Sound Power Boost68
  • Sound Power Max Speed56
  • Sound Power Min Speed38
  • Type of Control / AppliancesMechanical
  • Type of Control SettingsSlide switch
  • TypologyBuilt-in/Built-under
  • Guarantee2 years
ER - C
Key performance features:
  • Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate exhaust air according to EN 61591:
  • max. normal use 362 m³/h, intensive 618 m³/h
  • Noise max. Normal Level: Noise, max. speed in normal us: 56 dB dB*
  • Slider switch control for extractor speeds and light
  • 3 power levels & intensive setting
  • Twin motor
  • 2 x LED spot 2.15W (low volt)
  • Colour Temperature: 3500 K
  • 2 removable metal grease filter cassettes
  • For installation under an overhead canopy kitchen unit
  • Canopy hood
  • Slider switch control
  • Mechanical
Performance/technical information
  • Suitable for ducted or recirculating operation
  • For recirculated extraction charcoal filter (accessory) needed
  • Max. extraction rate: 618 m3/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
  • Max. normal use: 56 dB(A) re 1 pW
  • Intensive: 68 dB(A) re 1 pW
  • Power rating: 206 W
  • Light Intensity: 438 lux
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 255-255 x 530 x 380 mm
  • Dimensions recirculating (HxWxD): 255-255 x 530 x 380 mm
  • Built-in dimensions (HxWxD): 255 x 500 x 350 mm
  • Blower Efficiency Class: D*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
  • Average Energy Consumption: 79.8 kWh/year*
Optional accessories
  • Recirculating kit DHZ7305
More Information
Manufacturer Bosch
Colour Silver
Model Number DHL555BLGB/MG
Operating Mode Convertible
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 15.7
Fluid Dynamic Efficiency Class D
Lighting Efficiency 66.4
Lighting Efficiency Class A
Number of Motors 2
Grease Filtering Efficiency 86.7
Odor Filter No
No Return Air Flow Flap No
Grease Filter Material Washable aluminium
Grease Filtering Efficiency Class B
Sound Power Max Speed 56
Sound Power Min Speed 38
Sound Power Boost 68
Noise Level Boost Position 68
Max Output Air Extraction 363
Boost Position Air Extraction 618
Max Output Recirculating Air 268
Boost Position Output Recirculating 395.0
Min Air Flow 196.0
Number of Lights 2
Niche Depth 350MM
Max Niche Width 500MM
Min Niche Width 500MM
Max Air Flow 363
Type of Control Settings Slide switch
Plug Type GB plug
Approval Certificates CE, E17D UKCA marking, VDE
Appliance Frequency (Hz) 50
Appliance Voltage (V) 220-240
Appliance Current (A) 10
Installation Type Built-In
Construction Type Built-In
Energy Efficiency Class C
Type of Control Mechanical
Cord Length 130CM
Air Flow Boost 618.1
Diameter of Air Outlet 0MM
Typology Built-in/Built-under
Noise Level 56DB1
Max Extraction Rate (m3/h) 150-450
Energy Rating C
Item Condition Manufacturers Graded
